Monthly Report Tutorial

As posted on my blog yesterday.

At a former client, I was asked to submit monthly reports that show details of work performed in 15 minute increments.

My line of thought went something like this,

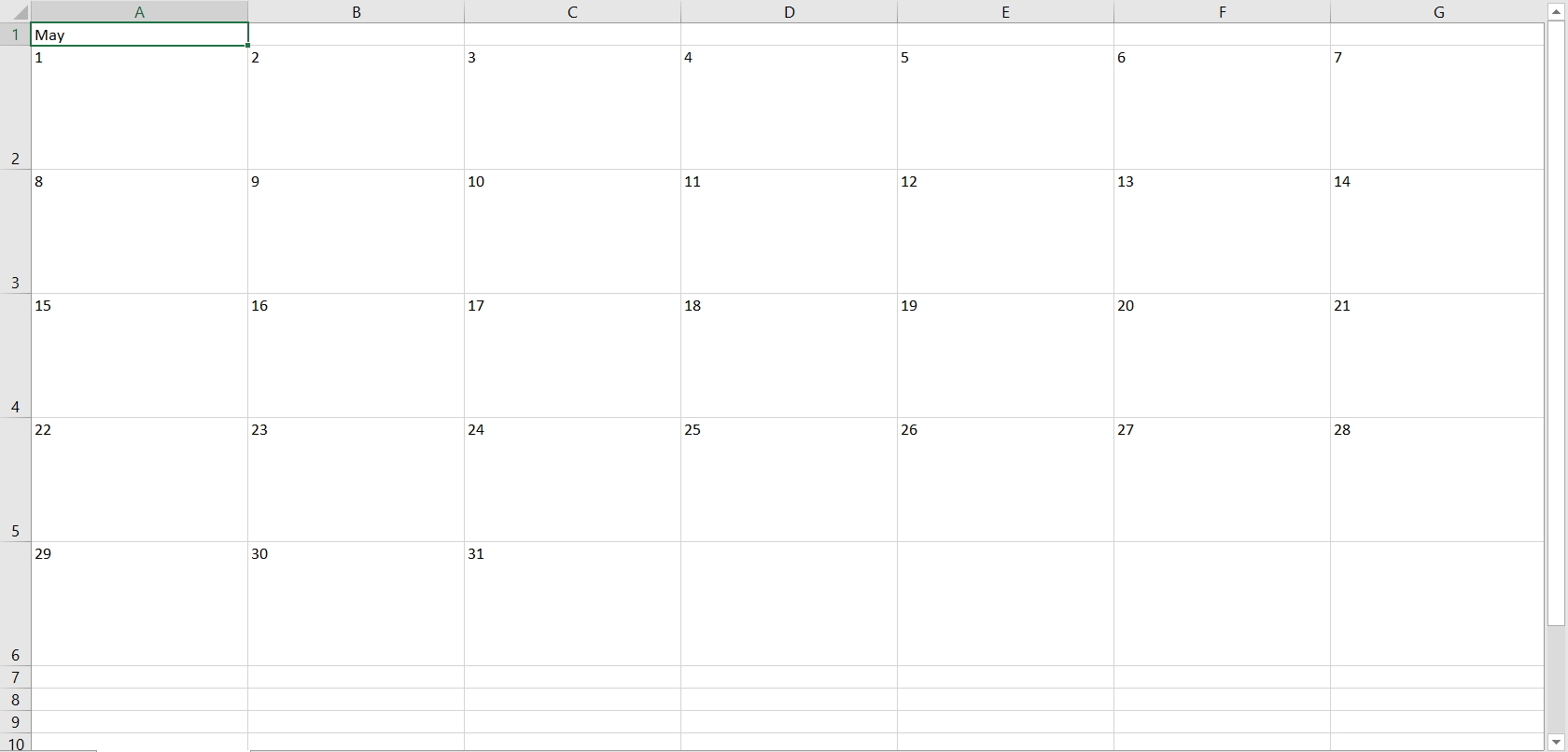

“Let’s see, a monthly calendar, something like the one on my fridge door comes to mind and making one in Excel should be easy…”

One problem is space. If I do several tasks in one day, do I use tiny font to make the details fit, or do I make the calendar larger to the point that I have to scroll copiously?

Also, just how practical is that style of calendar going to be when it comes to adding up total time per task? Something along the lines of a regular timesheet would be better.

I can easily fit 32 rows on my laptop screen. That’s a good start. So here’s how to do the same thing I did, if you are interested.

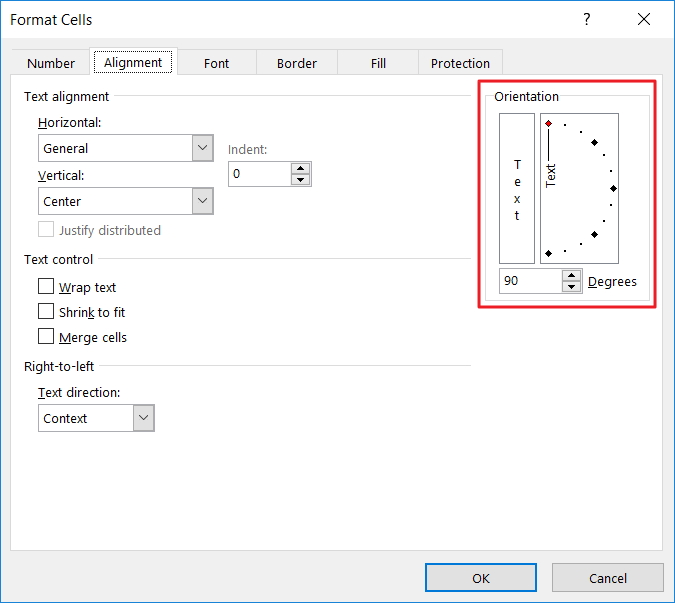

Leave the first row for your headers. In cells A1 and B1, enter “Date” and “Day”, then change the orientation. Right click the cells, select Format Cells, Alignment, and change Orientation to 90 degrees.

(You might want to change the Alignment too. Choose from the options on the Alignment Group on the Home Tab)

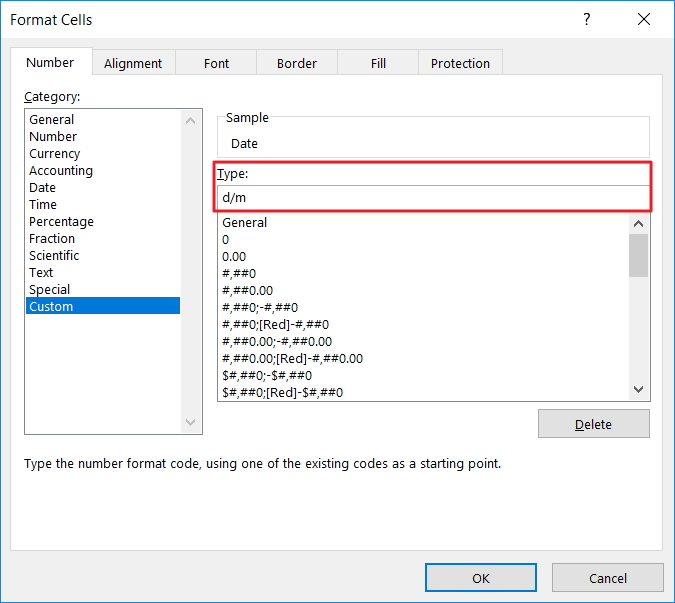

Enter the first day of the month in cell A2. Select range A2:A32, then change the format to either “d/m” or “m/d” as you prefer. Right click the cells, select Format Cells, Number, and enter the format in the Type text box in the Custom section.

Now enter =A2+1 into Range A3:A32 and click your Ctrl and Enter keys simultaneously to enter the formula into all selected cells.

In the same way, enter =CHOOSE(WEEKDAY(A2,1),"Su","Mo","Tu","We","Th","Fr","Sa") into Range B2:B32.

Adjust the width of both of these columns and set the alignment to suit.

You should have something like this.

And now for the details. Long descriptions take up space, so let’s use numbers instead. Keep in mind that longer tasks won’t be completed in 15 minutes, and recurring tasks will be duplicated so that’s going to cut down the number of tasks in total. With any luck, we can keep things within double digits.

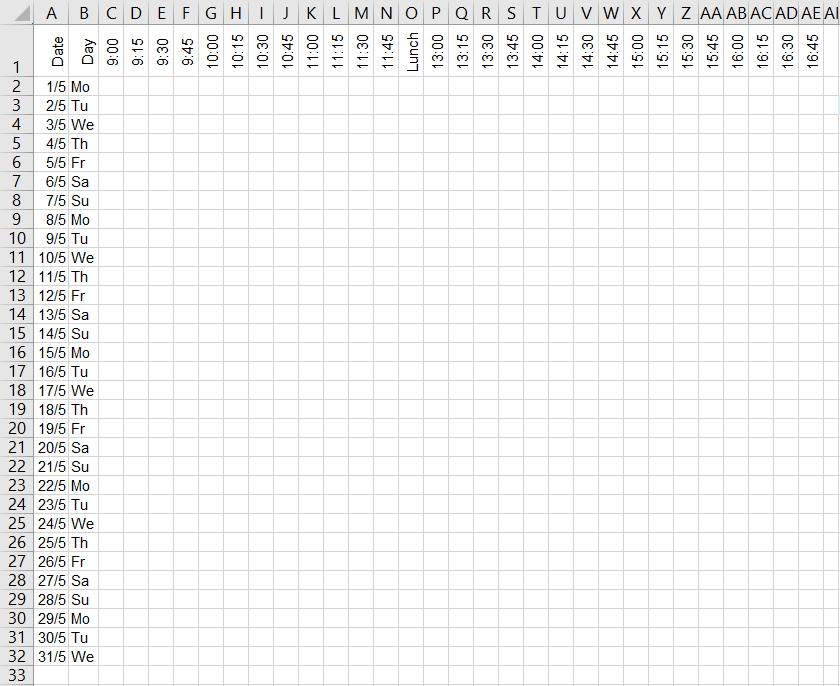

Start times allotted for the 15 minute intervals go in Row 1. Adjust the Orientation to 90 degrees. “h:mm” is a suitable format.

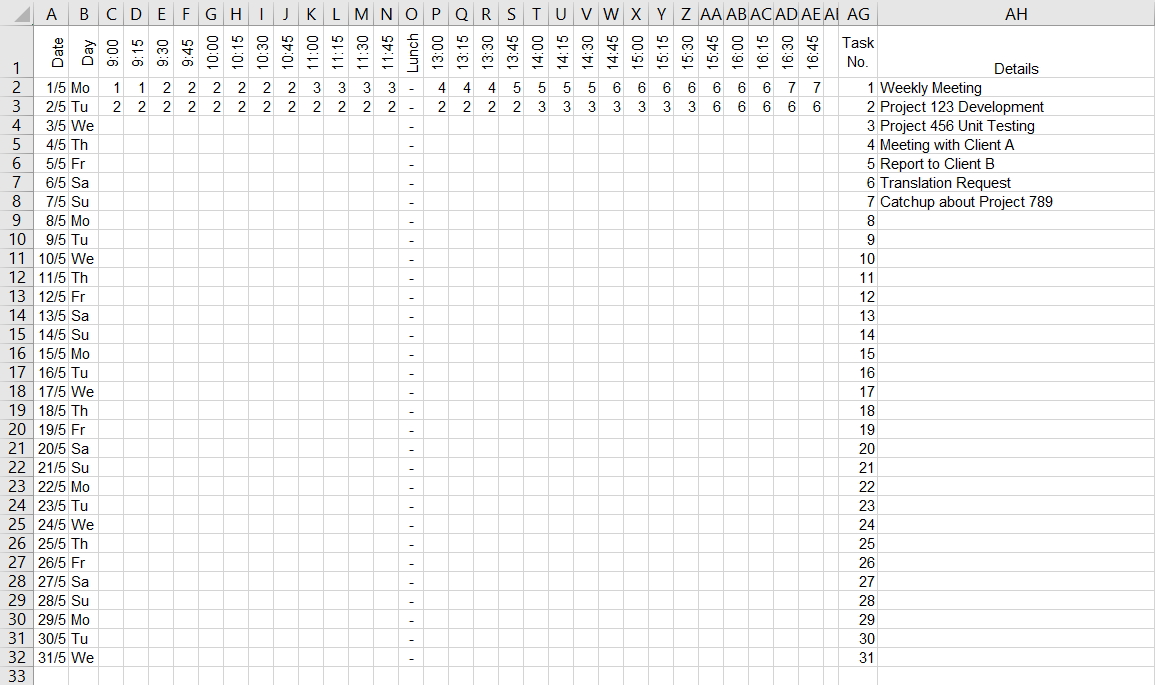

The task descriptions that match the numbers can go on the right. But note the numbers to their left to perform a lookup.

Important: adjust the following ranges to suit your requirements. Use Named Ranges if you prefer.

Enter formulas to add up the time. Type the following formula into Cell AI2, and drag down to the end of your list.

=IF(COUNTIF($C$2:$AE$32,AG2)=0,"",COUNTIF($C$2:$AE$32,AG2)/4)

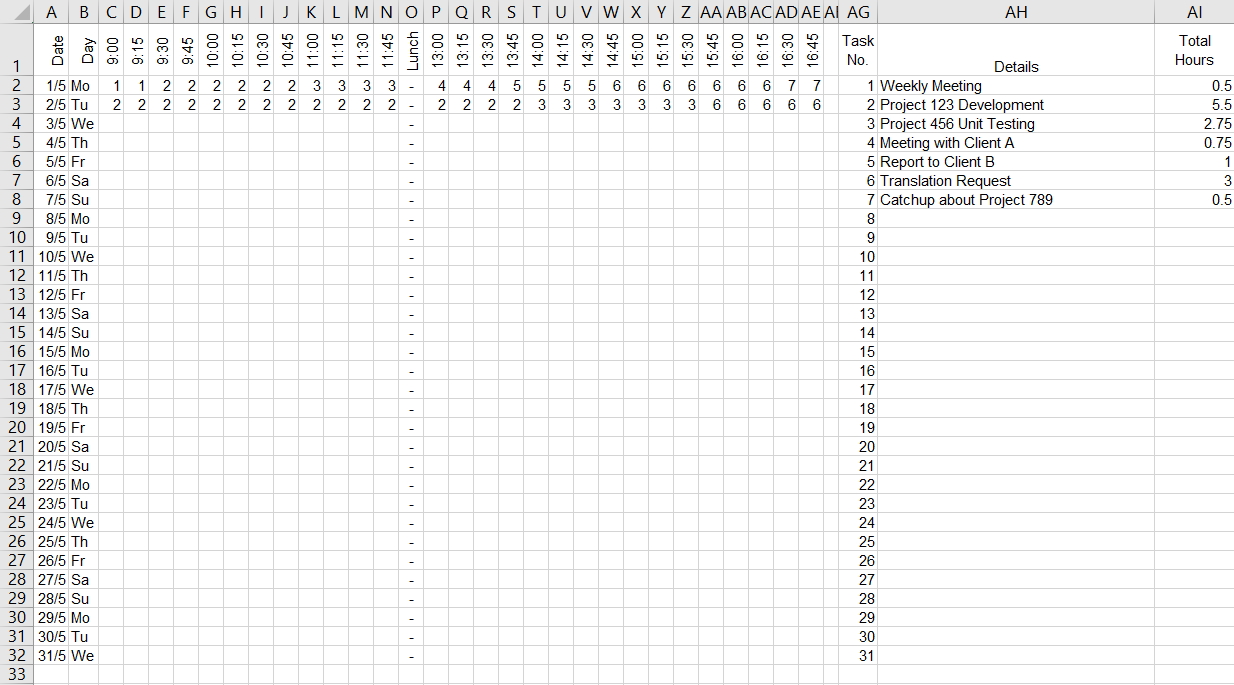

You should have something like this.

You can freeze the first row if the number of tasks exceed the number of visible rows on your screen. (View Tab, Windows Group, Freeze Panes, Freeze Top Row)

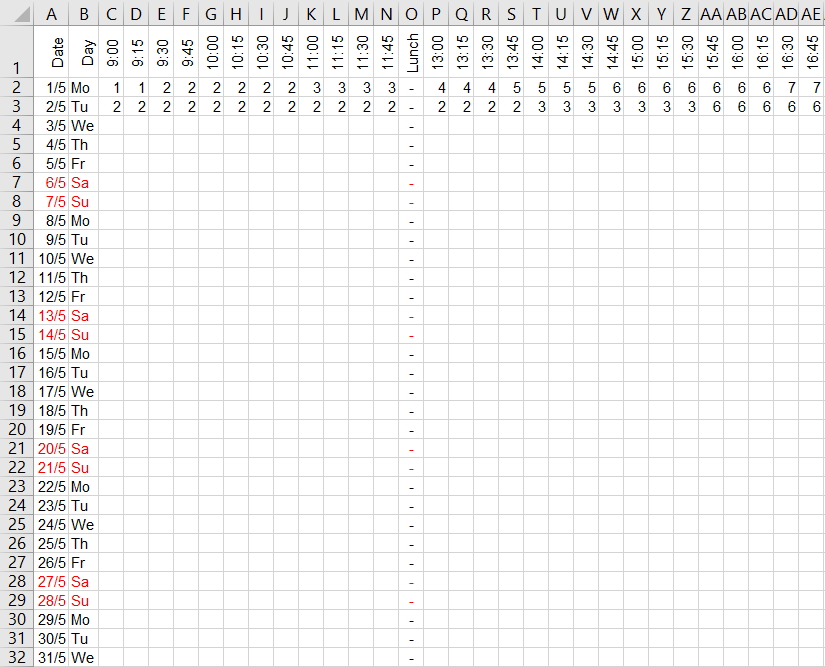

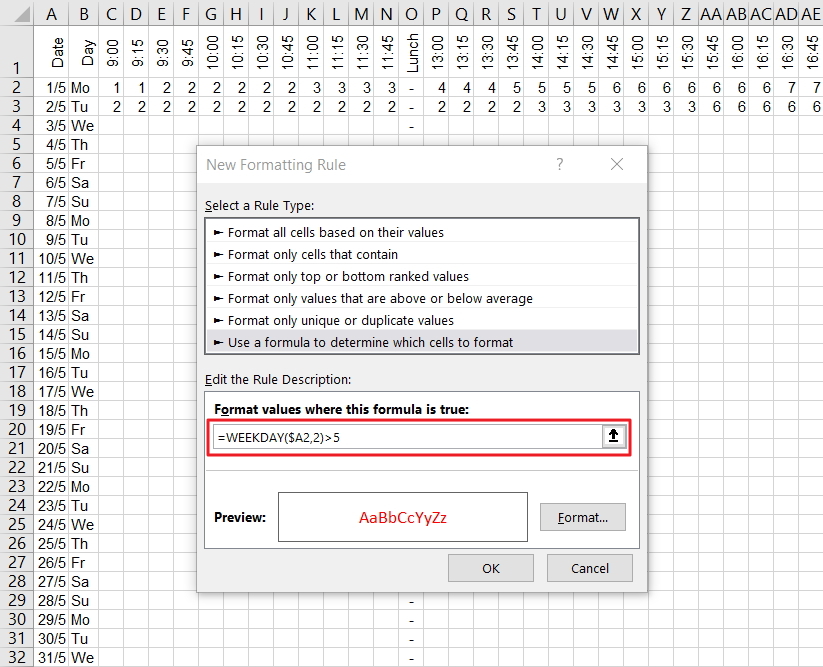

Now for some extra features to enhance visibility. Why not add some Conditional Formatting to highlight the weekends? With Range A2:AE32 selected, click the Home Tab, Styles, Conditional Formatting, New Rule, then “Use a formula to determine which cells to format” and enter this formula. (Click the Format button to choose a suitable format)

Here’s the result.

An ActiveX Combo Box and a bit more Conditional Formatting makes it easy to see when the work was done. If you can’t see the Developer Tab on the Ribbon, select the File Tab, Options, Customize Ribbon, then tick “Developer” on the list to the right and click the OK button.

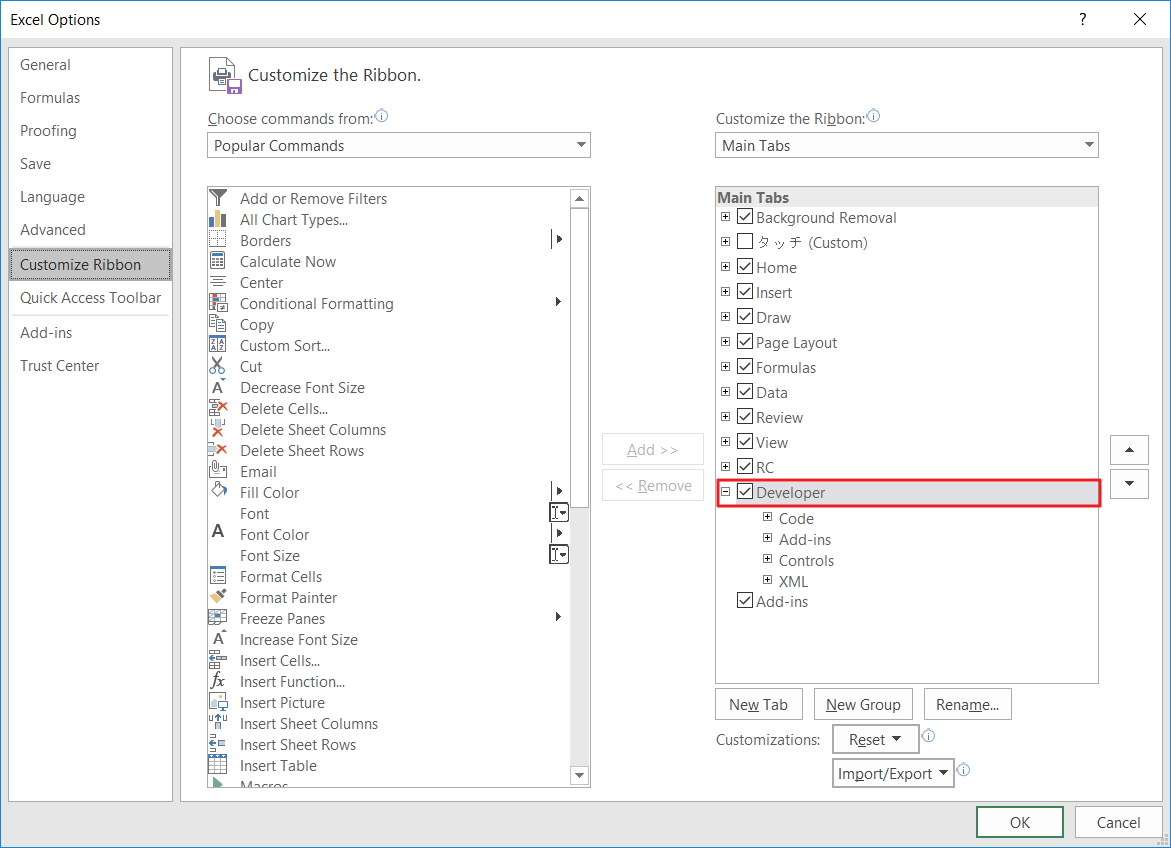

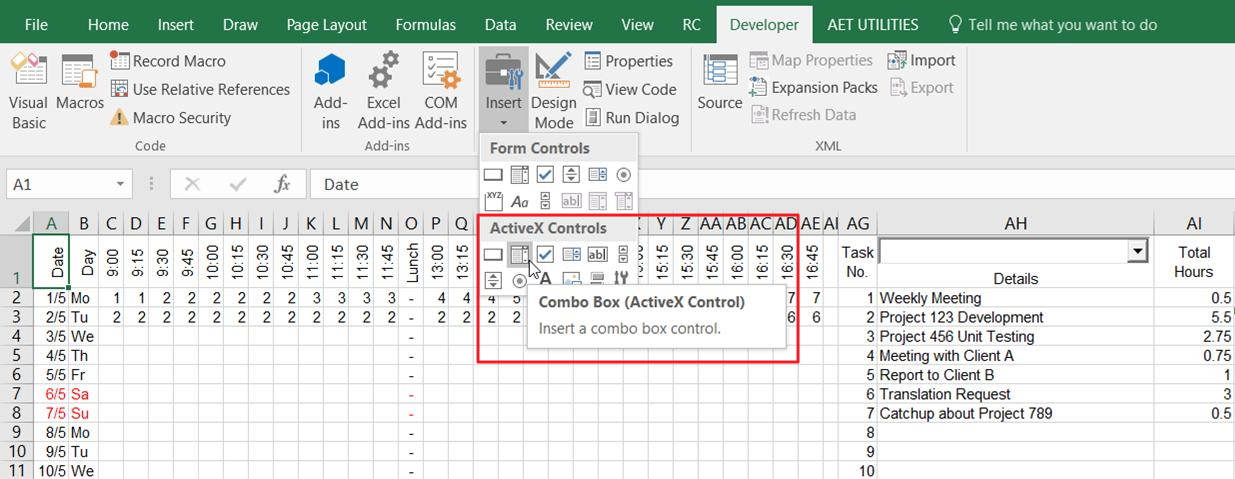

On the Developer Tab, select Insert from the Control Group to add an Active X Combo Box. (I’ve already added one to Cell AH1)

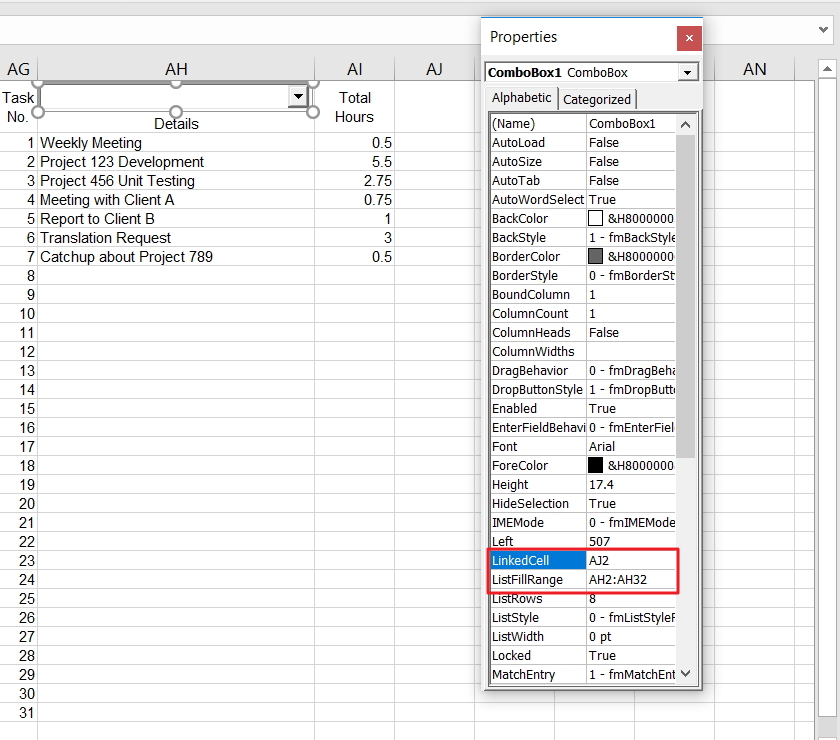

Right click the Combo Box and select Properties. Set the LinkedCell and ListFillRange properties. I’ve hard-coded my ListFillRange range reference but you can use Named Ranges too, as in “=Tasks” without the quotation marks.

When finished, toggle off Design Mode on the Developer Tab.

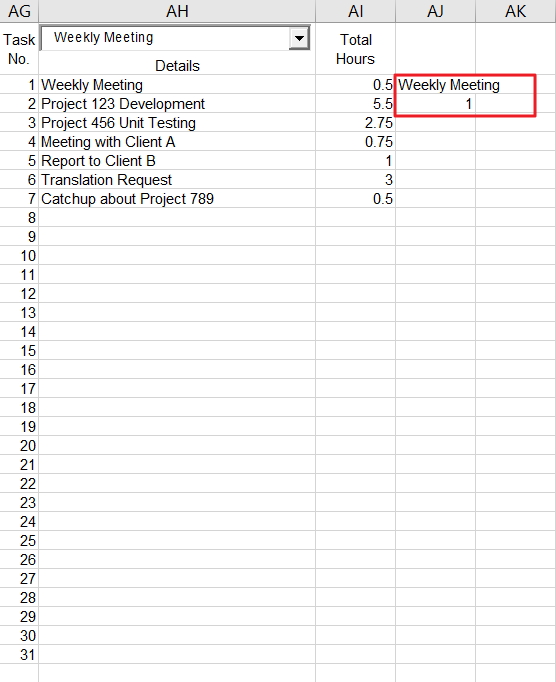

Note the linked cell. That gives me the selected item of the list. Now I use another formula to get the reference number which I have put in the cell below the linked cell (In this case, Cell AJ3).

=MATCH(AJ2,AH:AH,0)-1

If I select the first item on the Combo Box, Cell AJ3 will show 1.

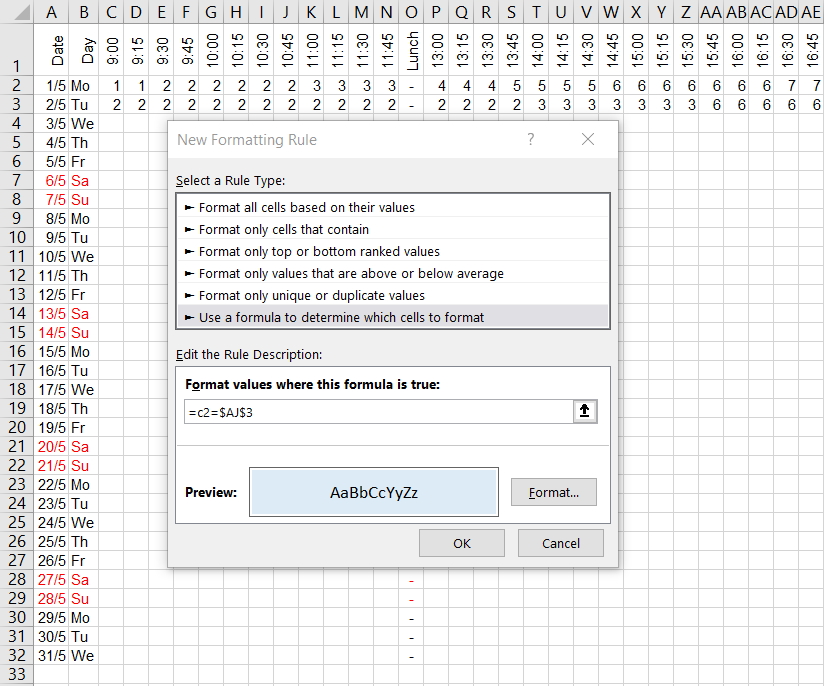

Here’s the Conditional Formatting for the details part of the report. (Range C2:AI32)

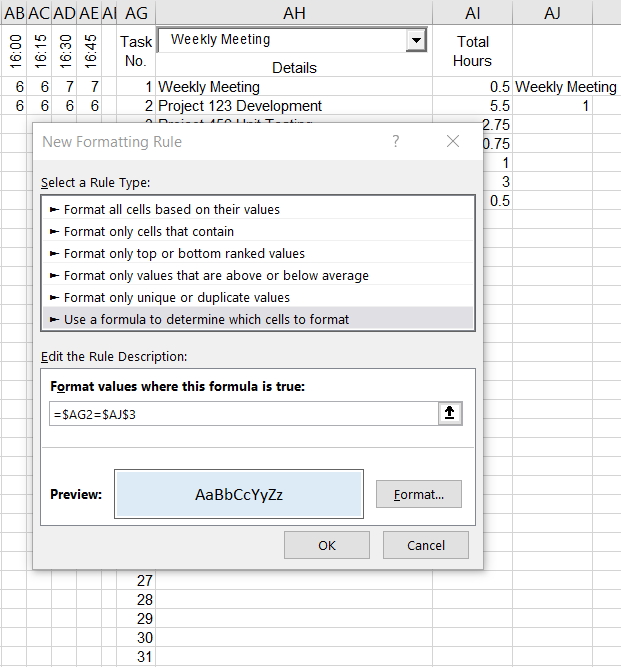

And here’s the Conditional Formatting for the list. (Range AG2:AH32)

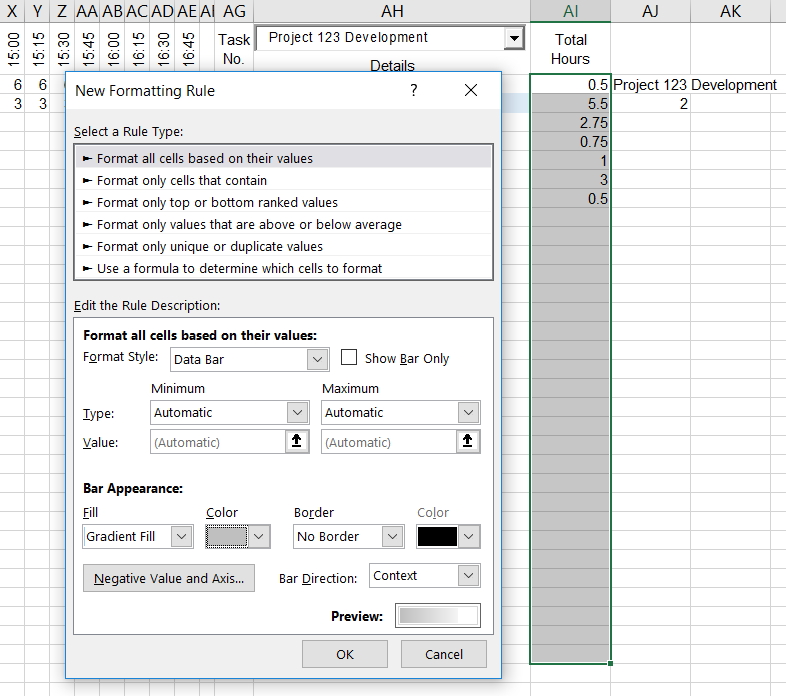

I also added some Data Bars to the hours.

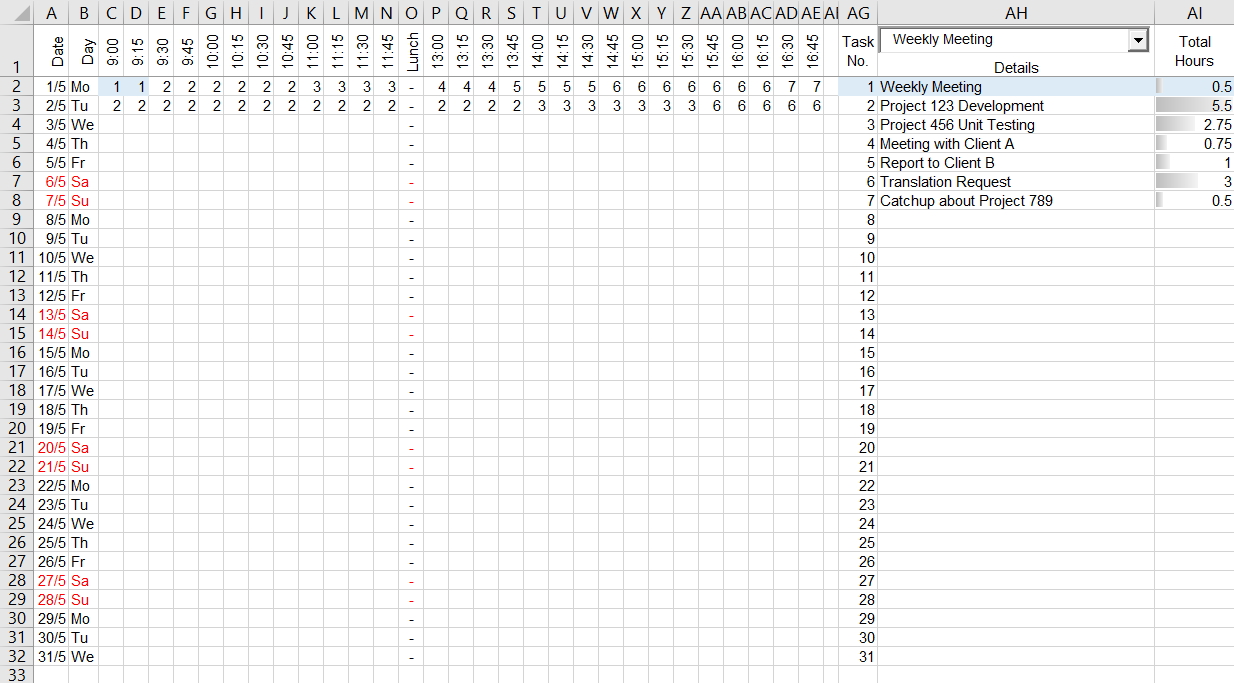

And we’re done.

No VBA was used so you can send the file without explaining the need to enable macros.

Here’s a download link if you want to skip making one yourself.

AET VBE Tools v1.7

They are finally ready!

This verson includes 3 additional tools, and another option to the existing Cleanup Project Code tool.

Here’s a description of what’s new.

1. Rename Userform Controls
This tool allows you to batch rename all controls on a userform via a simple Find and Replace interface. In addition to changing the control names, it also changes code with the old control name to the new control name.

So, if you want to change all controls that start with “CommandButton” to “btn” or “cb”, etc, this is the way to do it all at the same time!

2. Make Project Variables List
The bigger the project, the more complex it becomes.

This tool analyses your code and makes a list of variables and constants.

Details include:

  • Module Name (Where the variable or constant is)
  • Scope (Public, Private, Type or Procedure)
  • Location (Declaration or procedure name)
  • Name (Variable or constant name)
  • Type (Variable or constant type, eg String, Long, etc)
  • Const (True or null, to discern between variables and constants)
  • Const Value (Value if constant)
  • Found in Project (Count within project)
  • Found in Report (Count within report)
  • Modules Count
  • Procedures Count
  • Unique Values
  • Duplicate Values

    More features are planned in the near future.

    3. Copy Code for Web
    If you need to show your code on the web, normal indenting won’t show. The way to get around it is to convert indent spaces to “ ”.

    This tool does that and copies the code to the clipboard so you can paste it where required.

    4. Delete Orphan Code
    This feature was added at the request of Kellsens Willamos, who has supported me and the development of these tools from the beginning.

    What’s “orphan code”?

    When developing, did you ever click userform controls by mistake? Maybe you get something like this.

    Private Sub lblSelectProject_Click()

    End Sub

    Chances are you don’t want the code, and if there’s nothing between the first and last line, it’s a fair bet that you don’t. The Delete Orphan Code tool looks for code like this and gets rid of it.

    I’ve added it as an option on Cleanup Project Code. To include it, tick the checkbox on the Settings form.

    As mentioned previously, I’ve made AET VBE Tools shareware. But when you see the price, I hope you will agree they are well worth the cost. (And you will get future versions free of charge!)

    You can download them here.

    P.S. I’m looking for affiliates and translators. If interested, email me at aengwirda at gmail dot com.

  • AET VBE Tools v1.6.1

    Over the last week, I made some changes to my AET VBE Tools.

    Although still free, I want to ensure they are as good as I can make them for you, before I release a paid version.

    This is what has been done –

    An indenting bug was fixed for Select Case constructs when working with Projects and Modules.

    I also improved the indenting of Add Line Numbers code.

    When adding the date and time to text files being exported, the code has been adjusted to show the correct time.

    I made a change to the Copy Code and Compare Code userforms. Sometimes duplicate file names were showing.

    I edited Highlight Code In Excel so that individual Case statements are also highlighted with Select Case constructs.

    Case Statements

    Note: It is a big help with regards to visibility to see them highlighted this way. Unfortunately I had to hard code that part, so it will only work if your tab settings are set to 4. (In the VBE, Tools, Options, Editor, Tab Width). If I find a way to determine this programatically, I will adjust the code to suit. Alternatively, if you know a way, please leave a comment.

    As a small bonus, I also added the functionality to delete Debug.Assert and Stop to the Cleanup Project code.

    Download the new version (now v1.7) here.

    AET VBE Tools

    Late last year, I started work on a new set of VBE tools. It’s an extension of a code indenter that I made several years ago. I thought it would be nice to update it.

    So far I’m up to Version 1.6. It’s freeware (sorry, now shareware), but I’m starting work on a shareware version (v1.7) that will have more stuff. Anyway, here’s what I blogged about it on my site. Give it a try if you like!

    Access AET VBE Tools by right clicking within the active code pane.

    Here are the tools.

    Indent Code
    Indent code within the active VB project, module, procedure or selected text.

    Add Line Numbers
    Add line numbers to code within the active VB project, module, procedure.

    Delete Line Numbers
    Delete line numbers from code within the active VB project, module, procedure.

    Export Code
    Export code from the active VB project, module, procedure to text files.

    Compare Code
    Select modules from projects.

    Code from both modules will be exported to worksheets in a new workbook.

    Code that exists in one module, but not the other (and vice versa) will be highlighted.

    Copy Code
    You can copy code/modules between projects.

    Standard modules, class modules and userforms will be be replaced if they exist (have the same name), or added if they don’t exist.

    ThisWorkbook code will be replaced.

    Sheet module’s code will be replaced if the sheet exists, or worksheets will be added with the new code if they don’t exist.

    Macro Comment Tools
    A handy way to add generic comments to all macros in the active project or module.

    Insert Code Snippets
    Tired of entering the same code all the time? This makes it easier.

    Run Favourite Macros
    Yes, you can already run them from your Personal workbook.

    But now you can also export your favourite code to text files. Note: Not all code will run. This is a experimental tool, but I have found it quite useful when coding myself.

    Multiple Find And Replace
    You can find and replace code with several fields at once. Fields are saved between sessions.

    Cleanup Project
    Just 2 options at the moment. You can delete lines of code that have “Debug.Print”, and also delete excess blank lines. (Only a single blank line will remain)

    Highlight Code In Excel
    Export your code to a worksheet in a new workbook. Selecting cells in Column A that have keywords like If, With, Select, etc will be highlighted so you can see where that part of the code begins and ends. This is very beneficial to your mental health when trying to figure out what connects with what in those long, long procedures.

    Last, but not least, there are various settings available.

    Download AET VBE Tools v1.6 (v1.7) here.

    AET Excel Utilities

    Hi there. For the last few months I’ve been working on my main add-in, AET Excel Utilities.

    Update
    So far I’m in the process of setting up some partners, had a translation offer, and downloads are happening as I write this. Thanks very much to everybody for your help. Don’t be shy if you are interested!


    I first started working on it in 2005, as a hobby, and a way to learn VBA. Over time it’s grown from having a handful of very simple tools, to what it is now – well over a hundred utilities (more like over two hundred), and some of them quite complex, even if I do say so myself. Useful? I like to think so. Not a day goes by that I don’t use it, and I can honestly say it saves me lots of time.

    But there’s a problem. Even though I like these utilities, I’m not very good at selling myself, letting alone anything I’ve made. And in the world of Excel, most folk have either never heard of me or think I’ve retired if they have. That’s been fine until now, with me plugging away in a corner, tinkering away, but it’s always bothered me that my tools could be so much more.

    So, I’d ask all of you for some help. I’m making the tools shareware. And I’m looking for people to help sell them. Do you have a site? If so, are you willing to become a partner or an affiliate? Like I say, I’m not great at sales so any assistance would be appreciated. Translations? Great! Let’s talk about a percentage. I guess the main thing is making people aware of them. Apart from making a bit of pocket money, serious interest will give me incentive to improve them and maybe even try to give my site a bit of an overhaul. (Please contact me using aengwirda [at] gmail.com if you are interested).

    Here’s a few screenshots to whet your interest. (Well maybe more than a few…). Look to the left, the AET UTILITIES tab shares both my main utilities and free add-ins (which you can download here).

    Worksheet Tools

    Rows And Columns

    Formula Tools

    Deletion Tools

    Object Tools

    Export Tools

    Text Tools

    Number Tools

    Time And Date

    Chart Tools

    Path And Folder

    Workbook Tools

    Developer Tools

    Fun And Games

    Other Utilities

    Cell Menu

    Row Menu

    Column Menu

    Sheet Menu

    Here’s the download page link. On the same webpage, you can also download a copy of the Help files for more details on the individual tools, plus the password to see how the code works.

    In addition to adding more tools over the next few weeks, I’ll be working on my free utilities too. More details on them, and also some new code samples, that I’m looking forward to posting about in the near future.

    Pimpin’ My Site

    When Doug posted about Data Comparison Tricks, I saw Dick tell him to “pimp his site” in the comments.

    Having a vivid imagination, this is what went through my head.

    Yo Dawg!

    Anyway, that’s what I’ll now proceed to do. (Having obtained Dick’s permission first of course!)

    Here’s some stuff I’ve been working on recently.

    A multi-field Find and Select/Replace tool.

    AET Find and Replace

    Although a bit old, (like me), some of the code came from this.

    AET Cell Watch Form

    Here’s the old post about it from back in 2009. (From my former blog, which I’ll also pimp!)

    An alternative Status Bar that recognizes numbers even if the format is text. Woohoo!

    AET Status Bar

    And some games. (For the kids, but you can play too)
    Grrr...
    That’s enough pimpin’ for now. (I’m making new stuff as I write this) See you next time?

    Andrew’s Excel Tips

    Just a quick post to let everyone kind enough to visit – my site address has now changed to www.andrewsexceltips.net (formerly www.andrewsexceltips.com).

    I’ve been blogging for over 4 years now, and although I don’t post as often as I used to, I’m still cooking up new stuff to add.

    Thanks to Dick and my other great Excel friends for their support and inspiration!
